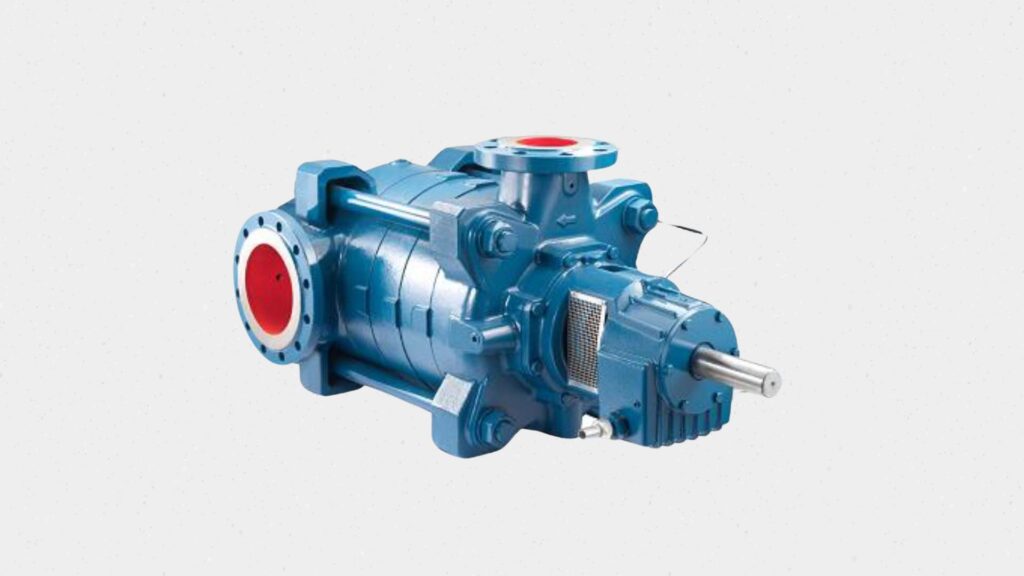

Multi Stage Pumps
A Multistage Pump is designed to move fluid through multiple impellers arranged in series. These impellers can be of the same or different types, such as low NPSH suction impellers, double suction impellers, or a combination of centrifugal first-stage and side channel stage impellers.
Known for their high energy efficiency, multistage pumps offer cost-effective pumping solutions with a flexible range of flow and head, making them ideal for various applications. They are commonly used where high-pressure fluid transport is required. The pressure builds progressively as the fluid moves through each stage, enabling the pump to transport liquids over longer distances with consistent performance.
| Max. Flow in M3/Hr. (Approx.) | 700 |
| Max. Head in Mtr. (Approx.) | 650 |
| Size upto (In Inch) (Approx.) | 10 |
| H.P. | 400 |
- Suction and discharge have integrally cast centerline supports.Piping stressers are thereby transmitted directly to the baseplate, avoiding possible casing distortion.
- Multi-vane diffusers maintain radial balance at all flows.
- Balancing disc absorbs all hydraulic thrust. The faces of the disc cannot contact under any flow condition or at rest.
- Enclosed impellers with extra long hubs are completely interchangeable. They are dynamically balanced and independently positioned on the shaft.
- Interstage bushings for trouble free operation.
- Separate extra deep stuffing boxes, subject to suction pressure only. Water jackets and mechanical seals are available.
- Fire Fighting
- Hilly area water supply
- Sprinkler System
- Water works
- Booster Service
- Reverse Osmosis
- Condensate Transfer
- Mining
